4 Series MSO Mixed Signal Oscilloscope Datasheet

主要特点

Never let a lack of channels slow down yourverification and debug process again!


The 4 Series MSO offers better visibility into complex systems by offeringfour and six channel models with a 13.3-inch high-definition (1,920 x 1,080)display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analog signals to verify and characterize device performance, and to debug challenging system issues.


Most engineers can recall situations in which they were debugging aparticularly difficult problem and wanted greater system visibility andcontext, but the scope they were using was limited to two or four analog channels. Using a second scope involves significant effort to align trigger points, difficulty in determining timing relationships across the two displays, and documentation challenges.


And while you might assume that a six channel scope would cost 50% more than a four-channel scope, you'll be pleasantly surprised to find that six channel models are only ~20% more than four channel models. The additional analog channels can pay for themselves quickly by enabling you to keep current and future projects on schedule.


Voltage measurements on a switch-mode power supply showing the ripple voltage on one of the power rails.


FlexChannel® technology enables maximum flexibility and broader system visibility


The 4 Series MSO redefines what a Mixed Signal Oscilloscope (MSO)should be. FlexChannel technology enables each channel input to be used as a single analog channel, eight digital logic inputs (with the TLP058 logic probe), or simultaneous analog and spectrum views 4  with independent acquisition controls for each domain. Imagine the flexibility and configurability this provides.


With a six FlexChannel model, you can configure the instrument to look at six analog and zero digital signals. Or five analog and eight digital. Or four analog and 16 digital, three analog and 24 digital and so on. You can change the configuration at any time by simply adding or removing TLP058 logic probes, so you always have the right number of digital channels.

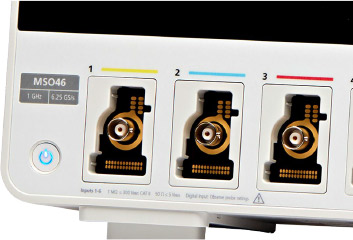

FlexChannel technology enables the ultimate in flexibility. Each input can be configured

as a single analog or eight digital channels based on the type of probe you attach.


Previous-generation MSOs required tradeoffs, with digital channels having lower sample rates or shorter record lengths than analog channels. The 4 Series MSO offers a new level of integration of digital channels. Digital channels share the same high sample rate (up to 6.25 GS/s), and long record length (up to 62.5) Points for analog channels.

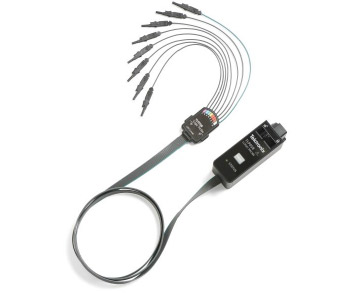

The TLP058 provides eight high performance digital inputs. Connect as many TLP058

probes as you like, enabling up to a maximum of 48 digital channels.
